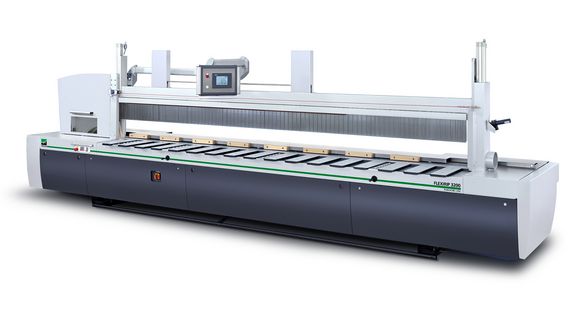

WEINIG FlexiRip JrionLine: The universal longitudinal circular saw — the all-rounder for every operational scope

WEINIG FlexiRip

The genuine Jrion from WEINIG offers universal applications in small, medium-sized and large operations. When it comes to cutting planks, boards and panels, the FlexiRip has established a reputation as an efficient and flexible longitudinal circular saw. Customers particularly appreciate the high levels of flexibility, the optimal wood recovery and the one-man operation. FlexiRip: the solution when it comes to universal application! In addition to solid wood, a range of other materials can also be cut, including plastic, aluminum and a variety of panel types. The FlexiRip's cut length and usable width is harmonized with its workpiece dimensions. Operation is simple: Lay and align the workpiece on the machine table and initiate cutting via the pedal! When the pedal is released, the saw blade dips and returns to the start position. The feed speed can be continuously and finely adjusted from 0 – 80m/min.

Prices
x

Different requirements - different prices

The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.

  1. I hereby consent to allow my data, entered above, to be processed in Weinig Group systems pursuant to the data privacy statement for the purpose of answering and documenting my inquiry.
Personal advice
x

Personal advice – for higher productivity and greater efficiency

Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.


The WEINIG FlexiRip series provides

  • Efficient and powerful ripping
  • Optimum material yield
  • Comprehensive safety concept
  • Can be integrated in pre-cutting systems
  • Innovative mechanical engineering

The WEINIG FlexiRip JrionLine provides

  • High cutting precision
  • High production output, even with extremely hard materials
  • Comfortable one-man operation
  • Quick saw blade change
  • High operational safety
  • Very user-friendly
  • Anti-blocking system

Technical Details

Perfect saw carriage concept

WEINIG FlexiRip

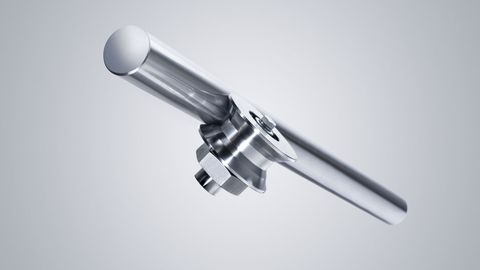

The guide system of the saw carriage is significantly optimized for even better cutting quality: The saw carriage is guided via lateral rollers on wear-free, hardened and precision-ground tracks. When cutting pressure becomes excessive, the anti-blocking system is automatically activated. This concept ensures play-free action and high cutting precision in the 1/10-mm range. At the same time, optimal safety is also guaranteed.

Precise positioning fence

WEINIG FlexiRip

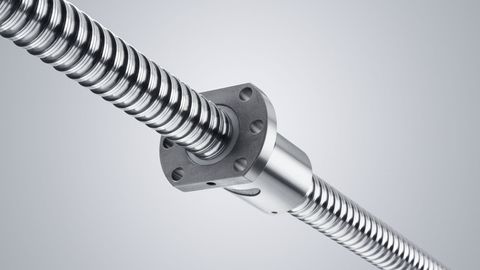

The positioning fence is adjusted via play-free and low-wear ball screws. This ensures smooth and even running and optimal dimensional accuracy, even with difficult workpieces. Ergonomically placed joysticks and a user-friendly large digital display help prevent operator fatigue.

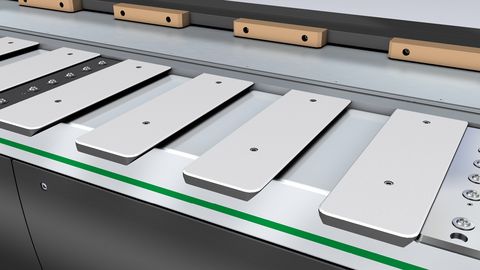

Practical machine table coating

FlexiRip Maschinentischbelag

The front machine table elements comprise special, low-friction, abrasion-proof plastic, allowing easy movement and alignment of heavy workpieces. The plastic supports are also prismatic on the side. These enable easy insertion of various options (e.g. ball bearing plates, bevel supports, mitre fence etc.) at any position on the machine table.

Cutting tests

We carry out cutting tests for you in our WEINIG demonstration centers. Take the opportunity and test new materials, tools or processes with us. Do not hesitate to contact us. We offer the possibility to carry out cutting tests free of charge and thus to secure new investments through technology. Benefit from the wealth of experience of our application specialists!


Options for extension

WEINIG FlexiRip

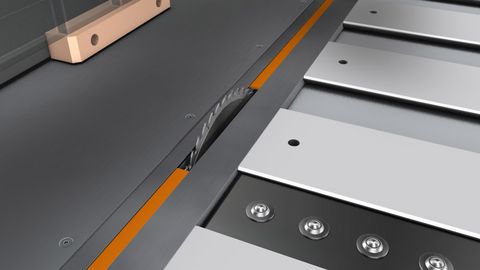

StripLock - kerf seal

The automatic kerf seal (patented) prevents wood chips from entering the machine interior.

Learn more


WEINIG FlexiRip

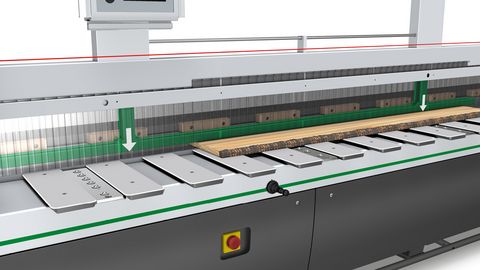

Workpiece hold-down unit

The parallel clamping pressure of the hold-down unit guarantees secure material clamping during cutting, even if the work piece is not centred.

Learn more


WEINIG FlexiRip

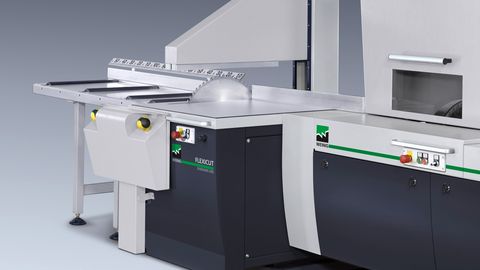

OptiCut C 700 Flexi

The OptiCut C 700 Flexi crosscut saw makes the FlexiRip a modern cutting line.

Learn more



Further information

Brochures

Simple, fast and sustainable: more details in a downloadable PDF document.

Download brochure

Technical data

Open table

Further images
